Products Description

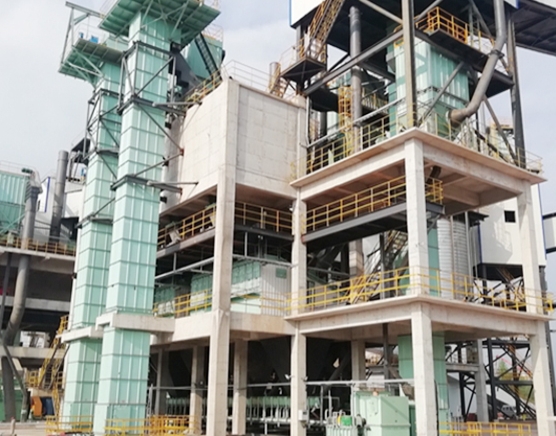

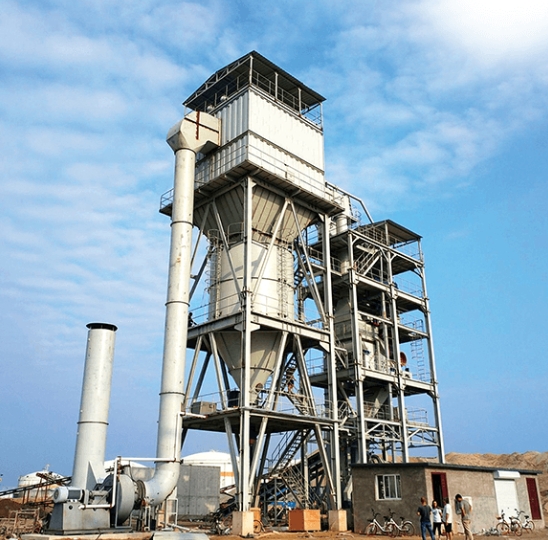

Tower sand making building
Application industries: sand and gravel plants, concrete mixing plants, mortar plants, water stabilization plants, etc.
Production capacity: 50~200t/h
Feed particle size: 0~40mm
Eight advantages
1、High efficiency sand making, high efficiency and more durable
2、High frequency screening, efficient screening of fine materials
3、V-shaped powder selection, perfect separation of sand and powder
4、Humidification and water control, moisture content control
5、Dust removal system: excellent performance and efficient dust removal
6、Intelligent control system for efficient screening of fine materials
7、Modular design, simple structure
8、Ash collection and loading, closed transportation
Technical Parameters
| DSV dry sand making system technical parameters | |||
| model | DSV50 | DSV100 | DSV150 |
| Feed particle size (mm) | 0-40 | 0-40 | 0-40 |
| Raw material input (/h) | 45-60 | 90-110 | 150-170 |
| Machine-made sand production (t/h) | 45-60 | 90-110 | 150-170 |
| Raw material moisture content (%) | <3.0 | <3.0 | <3.0 |
| Stone powder content (adjustable) | 3-15% | 3-15% | 3-15% |
| Installed power(Kw) | 210 | 630 | 890 |
| Major equipment | High efficiency vertical shaft impact sand making machine | ||
| High frequency screening machine | |||
| V-type powder separator | |||
| Fine sand recovery machine | |||
| Humidifier Mixer | |||
| Dust collection system | |||
| Bucket elevator | |||
| Centralized control system | |||
Product description
The sand making building adopts a double-rotor sand making machine, which greatly increases the production of sand in the particle size range of 0.6~0.15mm that was previously difficult to produce. The particle shape is a multi-faceted cube, and the fineness modulus of the finished product is stable and adjustable between 2.2-3.0. The particle distribution is uniform, and the grading is continuous and stable. The finished product has a linear grading, which can save 30-70Kg of cement per cubic meter of C30 compared to natural sand. The stone powder content of the finished product is controllable between 3-15%.
