Cone crusher is a kind of high-efficiency crushing equipment widely used in mining, construction, highway and other fields. It is favored by users for its high crushing ratio, high production efficiency, and stable operation.This article will introduce the structure and composition of the cone crusher in detail.

1. Crushing chamber

The crushing chamber of a cone crusher is its core part, which is usually composed of a moving cone and a fixed cone.The distance between the moving cone and the fixed cone can be adjusted by the adjustment ring to change the size of the ore discharge port, thereby controlling the product particle size.

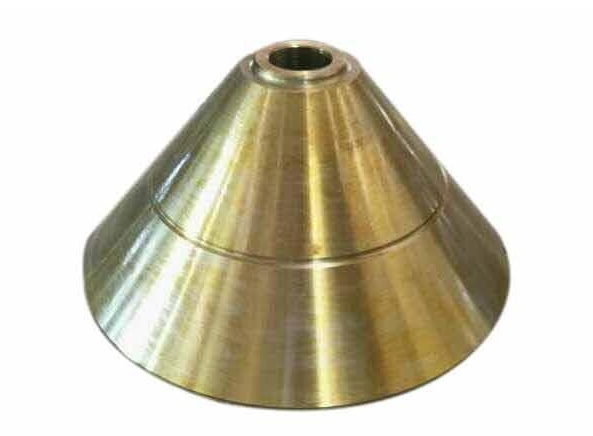

2. Moving cone

The moving cone is the main moving part of the cone crusher. It is driven by an eccentric shaft and rotates around the fixed cone.The surface of the moving cone is usually covered with wear-resistant materials to extend its service life.

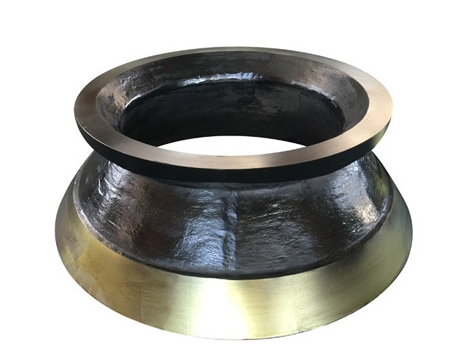

3. Fixed cone

The fixed cone is a component fixed to the rack, and its inner surface is matched with the moving cone to form a crushing chamber.The design and material of the fixed cone are equally important to ensure crushing efficiency and wear resistance.

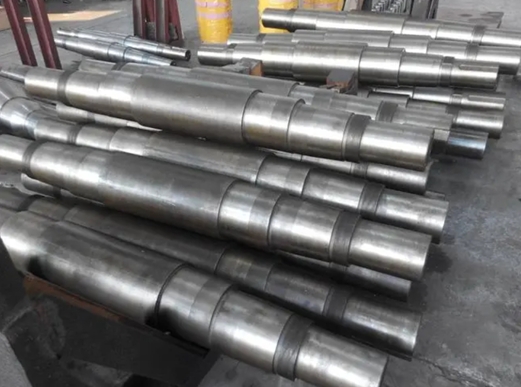

4. Eccentric shaft

The eccentric shaft is the power transmission component of the cone crusher. It is driven by a motor to transmit power to the moving cone.The design and material of the eccentric shaft are essential to its stability and durability.

5. Adjustment ring

The adjustment ring is used to adjust the distance between the moving cone and the fixed cone, thereby changing the size of the ore discharge port.Through the adjustment ring, the product particle size can be easily adjusted to meet different production needs.

6. Transmission device

The transmission device includes a motor, a coupling, a V-belt, etc., which is responsible for transmitting power from the motor to the eccentric shaft and driving the crusher to work.

7. Lubrication system

The lubrication system of the cone crusher is used to ensure good lubrication of all moving parts, reduce wear and extend equipment life.Lubrication systems usually include oil pumps, fuel tanks, oil pipelines, and lubrication points.

8. Control system

Modern cone crushers are usually equipped with advanced control systems, including operation panels, sensors, actuators, etc., to realize real-time monitoring and automatic control of the crusher.

9. Base and rack

The base and frame are the support structures of the cone crusher. They provide a stable installation foundation for the crusher and ensure the stability of the equipment during operation.

10. Feeding and discharging device

The feeding device is responsible for evenly feeding the material into the crushing chamber, while the discharging device is responsible for discharging the broken material.The design of these devices is essential to improve crushing efficiency and reduce material clogging.

conclusion

The structure of the cone crusher is complex and fine, and each component plays an important role.Understanding its structural composition helps users to better operate and maintain the equipment to ensure the efficient operation and long-term stability of the crusher.With the continuous progress of technology, the design and manufacture of cone crushers will be more optimized to meet increasingly stringent industrial needs.
