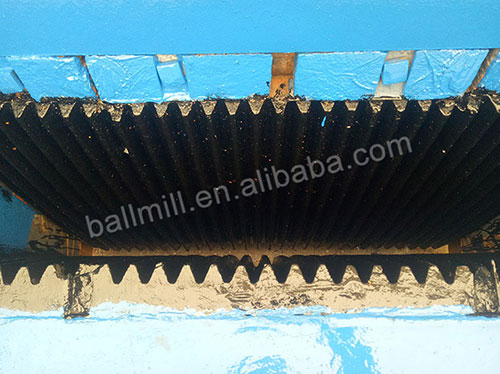

The 250x1200 fine jaw crusher is a model of the PEX series fine jaw crusher. Its crushing chamber is small and the jaw plate has fine serrations, which can crush small and uniform stone materials. It is usually used to process harder materials and the price is relatively low, so it is more popular in use.The specific technical parameters related to the output, weight, motor power and other technical parameters of this type of fine jaw breaker are introduced as follows：
The output per hour is about 20-61 tons.
The 250x1200 fine jaw crusher is a small-scale equipment. Although the output is not as high as that of large-scale equipment, the work efficiency is not low and can meet the needs. It can be used to crush various ores and rocks with a compressive strength of 147-245MPa, and it also adopts a “V” type crushing deep cavity, there is no dead zone, and the material can start to be broken in the upper part of the crushing chamber, which greatly improves the feeding capacity and output.Of course, one thing needs to be explained. The actual output of the equipment will vary according to different materials, feed particle size and other factors. Please consult the specific equipment manufacturer for details!
The weight of the 250x1200 fine jaw crusher is about 9.7 tons.
The fine jaw crusher is mainly composed of fixed jaw plate, movable jaw plate, frame, upper and lower guard plate, adjustment seat, moving jaw tie rod, etc. The design structure is reasonable and there are fewer components, so the weight is lighter, the parts are easy to replace, the maintenance is simple, and the installation and transportation are convenient, and the operating costs are low.
Fine jaw crusher | 250x1200 |
Feed particle size | ≤210mm |
Discharge particle size | 25-60mm |
Output | 20-61t/h |
Eccentric shaft speed | 330r/min |
Motor power | 6P 37kw |
Dimensions | 1780×2214×1430mm |
weight | 9.7tone |
When choosing a suitable fine jaw crusher, in addition to considering the weight and output of the equipment, other factors such as motor power and usage conditions should also be considered. These factors will affect the actual crushing effect and production efficiency.Here is a detailed 250x1200 fine jaw crusher model parameter table for you to help you choose for reference.
