In the production of sand and gravel, cone crushers have played a relatively large role. The equipment can produce sand and gravel products with high hardness and fine particle size according to the different stone quality and later uses.The new type of cone crusher has the characteristics of large capacity, medium-fine crushing, good adaptability, crushing and screening treatment, and self-loading conveyor.It is more used in metallurgy, chemical industry, building materials, hydropower and other material processing fields that often need to be relocated.Suitable for construction sites with smaller crushing sites.It should be noted that on mobile operation lines such as roads, railways, hydropower projects, construction waste crushing, etc., users can adopt a variety of configuration forms according to the type, scale and finished material requirements of the processed raw materials.
Characteristics of the new cone crusher
1.The mobile crushing station has a high parking space and a small turning radius. It is easy to transport and drive in the rugged and harsh road environment of the crushing site, saving time to enter the construction site.It is conducive to entering a reasonable construction area, eliminating cumbersome steel frame structure and foundation construction, and saving a lot of time.
2.According to the customer's material type and product requirements, a more flexible process plan configuration can be provided to realize the requirements of mobile crushing and mobile screening.
3.In order to reduce material costs, materials can be directly selected and driven to the site without transportation, directly reaching the size of the finished product; in addition, the expansion unit can directly deliver the broken materials to the designated belt conveyor, saving transportation costs.
4.It is equipped with a cone crusher with relatively high performance, high crushing efficiency, multi-function, excellent crushing product quality, lightweight and reasonable structural design, and good crushing performance.The quality can be better stable, and the crushing and screening requirements of a wide range of coarse, medium and fine materials can be realized.
The working principle of the new cone crusher

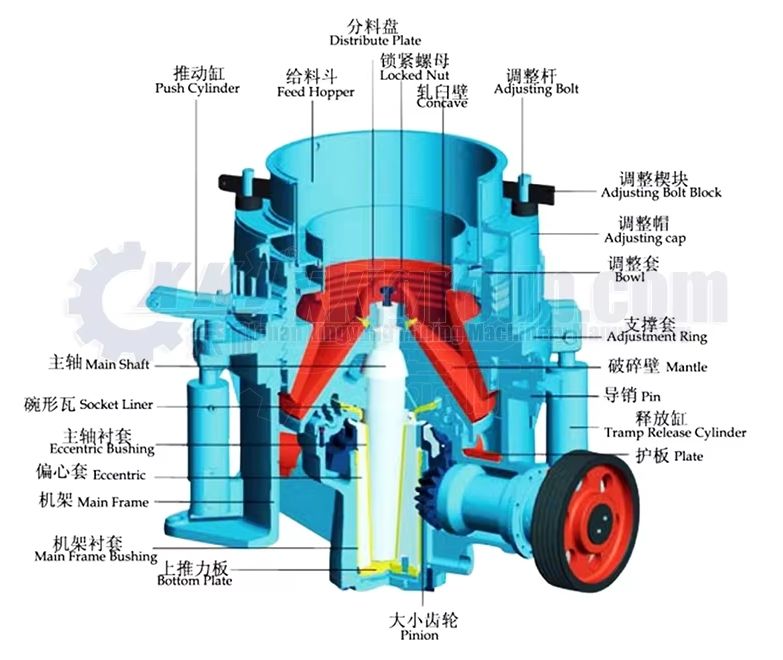

The working parts of the cone crusher are two truncated cones, one is a fixed cone (also known as the outer cone) and the other is a dynamic cone (also known as the inner cone).On the cross-section of the moving cone close to the fixed cone, the material is squeezed, impacted and bent by the moving cone to form a crushing chamber; where the moving cone deviates from the fixed cone, the broken material is discharged from the bottom of the cone under the action of its own weight, becoming a discharge port, and the material is loaded from the inlet.When the spring cone crusher is working, the motor drives the large bevel gear at the bottom of the eccentric sleeve through a hydraulic coupling and a small bevel gear, which rotates the eccentric sleeve, rotates the cone, and crushes the material.The equipment configuration is flexible, and it can be produced separately by a stand-alone machine or in combination with coarse crushing equipment.In addition to powering the unit, the diesel generator set in the device can also be configured with a joint power supply of the process system, which greatly improves the adaptability of the equipment.
