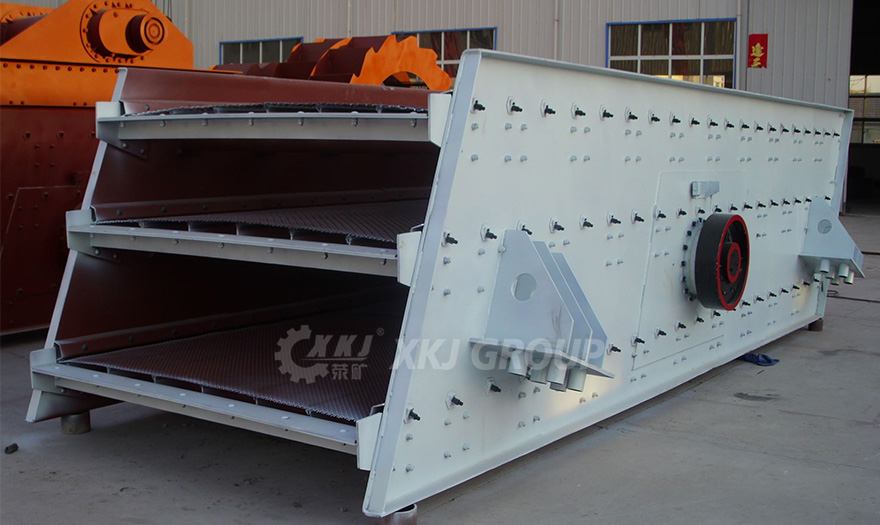

YA vibrating screen is mainly used for the screening and classification of powder and granular materials. Using the vibration motor as the vibration source, the materials are thrown up on the screen and move forward in a straight line. The material is evenly distributed from the feeder. Entering the feed port of the sieving machine, a variety of screen tops and sieves are generated through the multi-layer screen, and they are discharged from their respective outlets. It has the characteristics of low energy consumption, high output, simple structure, convenient maintenance, fully enclosed structure, no dust overflow, automatic unloading, etc., which is more suitable for assembly line operation.

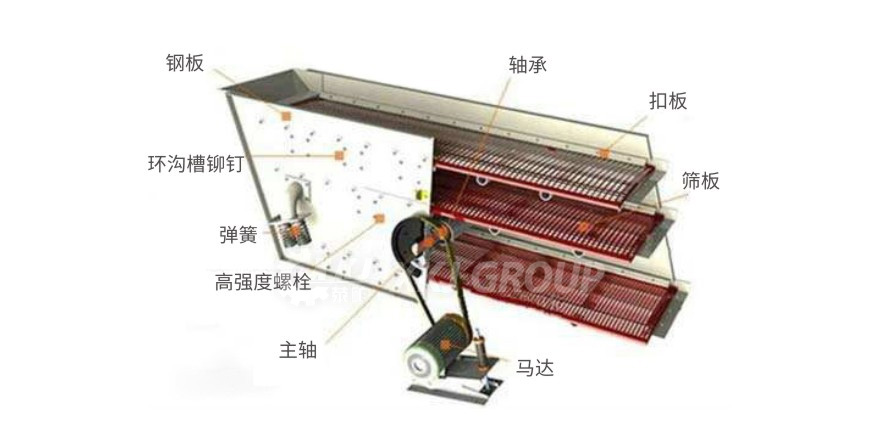

Vibrating screen is driven by double motors which make the motions of synchronous and reverse rotation, and the exciting force produced by eccentric block is offset in parallel to the motor axis direction while it is summed to the resultant force in a direction perpendicular to the motor axis, thus the screen machine motion trajectory is a straight line. The two motor shafts shaped a slope angle with the screen surface combine with the resultant force of the exciting force and the gravity of materials, which throw the materials forward in a straight way and achieve the purpose of sifting and grading. It can be used in the production line to materialize the automatic operation. Meanwhile, it features low consumption, high efficiency, simple structure, easy maintenance, fully-closed structure and non dust overflow, etc

Product Feature Advantages:

1.Use the unique eccentric structure to produce powerful vibrating force.

2.The beam and case of screen are connected with high strength bolts without welding.

3.Simple structure and easy maintenance.

4.Adopting tire coupling and soft connection makes operation smooth.

5.High screen efficiency, great capacity and longer service life.
