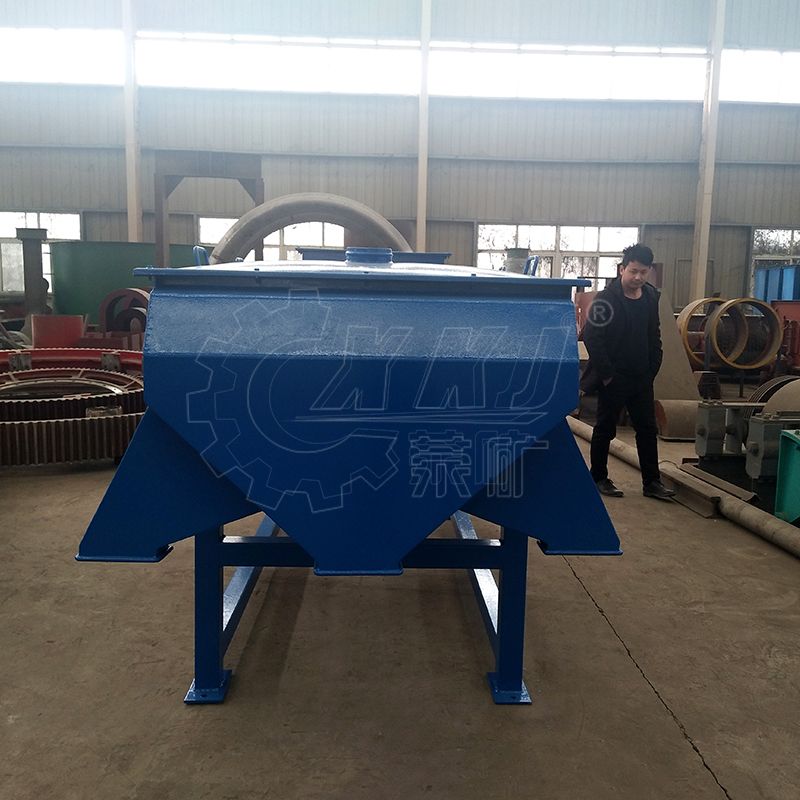

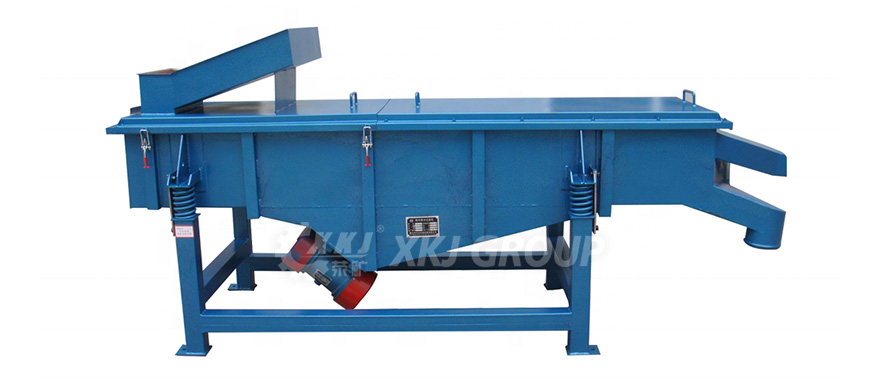

The DZS series linear vibrating screen is a screen box along oriented linear reciprocating motion for fine screening.
The screen angle of the DZS series line vibrating screen is adjustable. The vibrating motor is used as a vibration exciter and low energy consumption.

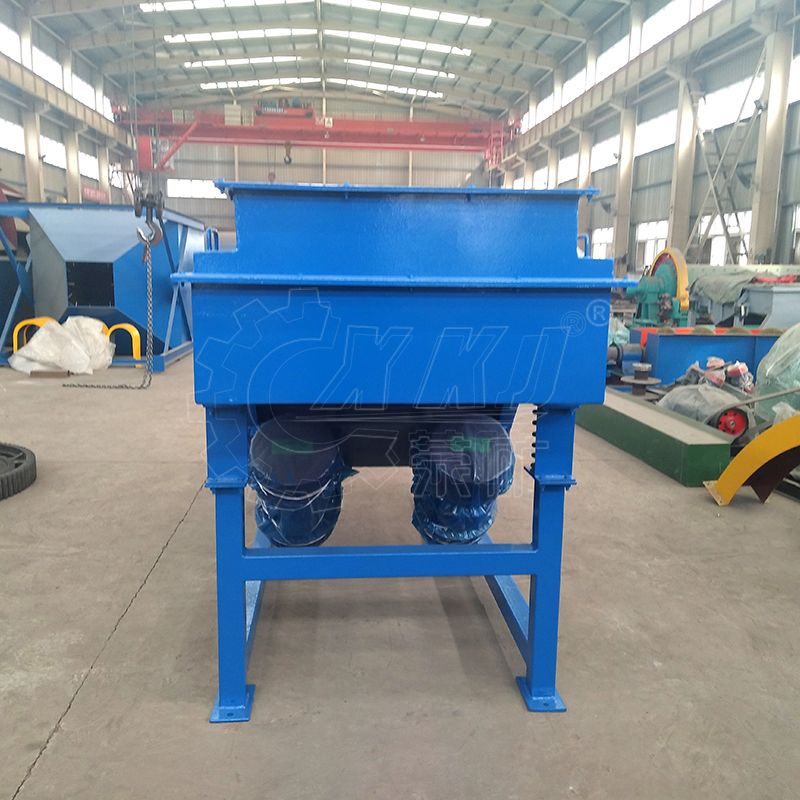

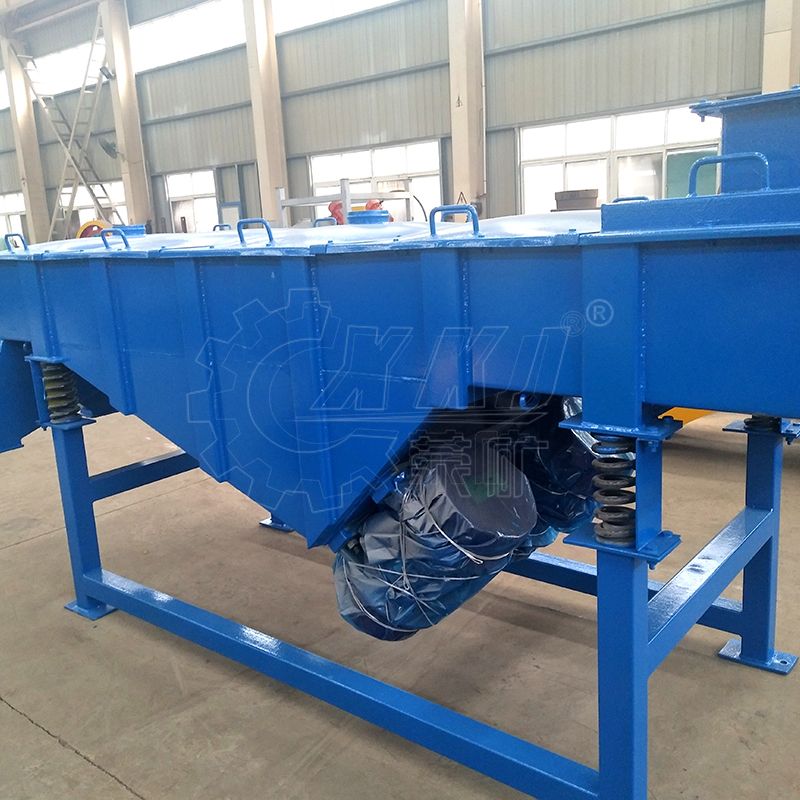

DZS series linear vibration screen is driven by a double vibration motor.

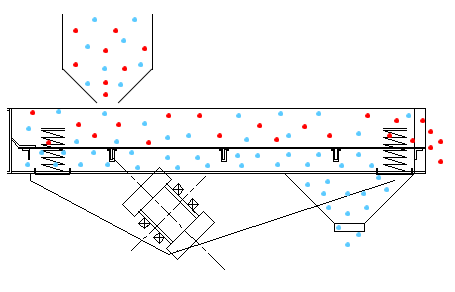

Although the two vibrating motors are synchronously rotated or reacted, the excitation generated by the transverse excitation force offsets the eccentricity, and the lateral excitation is offset, and the longitudinal agonist resulting force passes through the entire screen surface of the entire screen vibrating screen. In this way, the moving track of the vibrating screen is a straight line. In the exciting force direction and the surface of the screen, the material on the screen surface of the liner vibrating screen is thrown and jumped forward in a straight line. In this way, material screening and classification are implemented.

1.Small motor power, only 1/4-1/5 of other vibrating screens;
2.Linear Vibrating screen of DZS series has high screen efficiency;
3.Adjustable screen angle;
4.The load transferred to the foundation is small and the foundation requires no special treatment;
5.Linear Vibrating screen of DZS series is made of wear-resistant rubber with long service life
