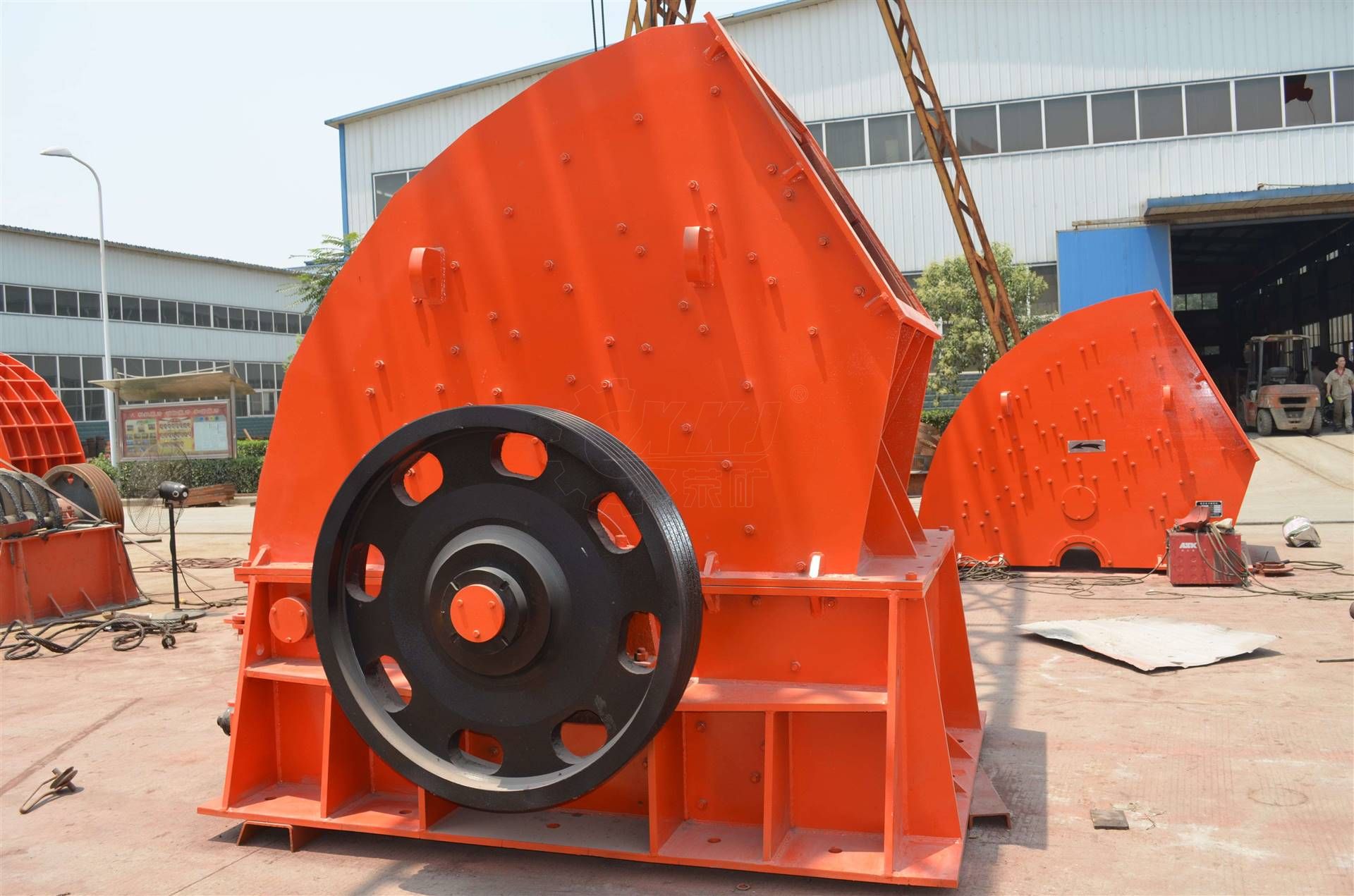

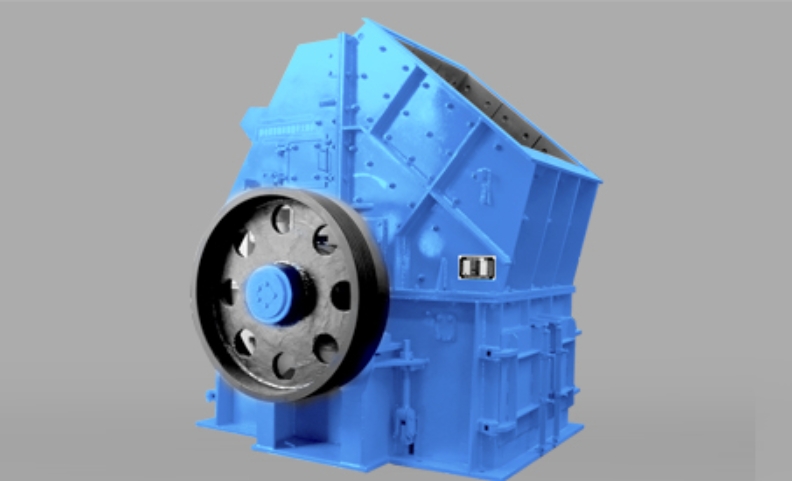

PCD Series Hammer Crusher

PCD series hammer crusher can crush medium-hard materials with maximum feed size of 600-1900mm and compressive strength below 200Mpa into finished materials below 40-25mm in one time. This series of hammer crushers has the characteristics of simple structure, large crushing ratio, large production capacity, low energy consumption and small space occupation. It can combine two or three stages of crushing into one time, simplifying the crushing process and reducing equipment investment.

Single-stage hammer crusher is widely used in cement, ceramics, glass, artificial sand and gravel, coal, non-metallic mining and new green building materials industries. Large pieces of materials enter the crushing chamber and are piled on the special middle bracket inside the machine. The hammer runs in the gap of the middle bracket, breaking the large pieces of materials continuously and causing them to fall. The small pieces that fall are further broken by the high-speed hammer and finally discharged after being evenly integrated by the arc grate.

Scope of application

Maximum feed size : 600, 850, 900, 100, 1200 (mm)

Production capacity : 80-600 (t/h)

Application areas : Widely used in cement, chemical, building materials and other industries.

Applicable materials : Mainly used for crushing limestone, dolomite and other medium-hard, brittle materials with low moisture content and small mud content.

Working Principle

Ore has different inherent defects, such as bedding, inclusions, cracks, especially cracks that extend in all directions, ranging from very small to large and visible to the naked eye, which lead to different strengths of ore in all directions. Violent impact can make ore break along the weakest points and weak surfaces. However, as the crushing process proceeds, the particle size of the ore continues to decrease, the weak points and weak surfaces also continue to decrease, and the strength of the ore increases accordingly. The ore becomes more and more solid, and higher impact energy is required per unit volume to break it.

Hammer crusher and impact crusher are both impact crushers, which use high-speed rotating hammers or plate hammers to violently collide with ore, crushing the ore while also achieving a certain movement speed, and then colliding with the impact plate or liner, or the ores collide with each other. After multiple collisions, qualified products are discharged from the machine.

PCD series single stage hammer crusher product features

Product features

1. The feed particle size is large, the crushing ratio is large, and the product particle size is uniform.

2. The yield rate is high, with granular products accounting for about 85%, which fully meets the requirements of use.

3. The gap between the grate bars is adjustable, the product particle size is controllable, and the particle shape is good.

4. Coarse and medium crushing are completed in one step, which simplifies the process flow and saves operating costs.

5. The hammer head, grate plate and impact plate are made of highly wear-resistant materials, which have a longer service life.

6. Small supporting power, low energy consumption, easy maintenance and few wearing parts.

Technical Parameters
