500 tph stone crusher plant

Production Line Introduction

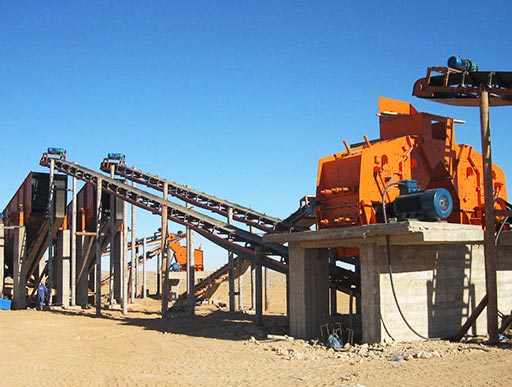

500tph crusher plant is a fixed type stone rock crushing and screening plant with 3 stage crushing process. It is typically constructed at a specific location and remains in that position for an extended period. They are commonly used in mining, quarrying, construction, and recycling industries, and consist of primary jaw crushers, secondary cone crushers or impact crushers, and sometimes tertiary crushers, along with screens, conveyors, and other equipment necessary for the crushing process.

500 tph stone crusher plant

Features

1. It is used to produce aggregates (coarse aggregates, crusher run, rock sand, fine aggregates) from limestone, granite, andesite, basalt, quartz, iron ore, etc. Coarse aggregates are usually used in ready mix concrete and asphaltic concrete. Crusher run is used for the bases and sub-bases for road making. Fine aggregates are used for the production of concrete and plastering.

2. The final size is 0-6mm(0-1/4' ), 6-12mm(1/4’-1/2’), 12-25mm( 1/2’-1’)(or other sizes according to your need) as aggregate for construction.

3. High degree of automatic operation. The whole crushing plant requires sevral workers for machine starting and stopping, routine maintenance.

4. High production efficiency, regular end product granularity, good grain shape, and low powder content.

5. Adopting high advanced control system to ensure security and reliable operation of the entire stone crushing plant.

How does 500 tph stone crusher plant work?

1. Raw material dump into the hopper by loader forklift, then feed into jaw crusher evenly and continuously by vibrating feeder for primary crushing.

2. Then coarsely crushed materials are conveyed to transfer bin, which plays the role of transfer, buffering and adjustment. The size should generally be able to stack aggregates for next crushing equipment to run for 2 to 3 hours.

3. Material from transfer bin is sent to DG cone crusher for secondary crushing process. Then goes to tertiary crusher (cone crusher or impact crusher）to get requirement stone size.

4. The final crushed material goes to vibrating screen to classify final qualified products according to different size ranges as stock pile for sale, or for road builidng use. Unqualified materials will be carried back to the stone crushing equipment for recrushing.

5. Customer can classify final products according to different size ranges. All the final products are up to the related standards within and beyond China. Dust is generated during the working process while the dust control units are needed.
