Products Description

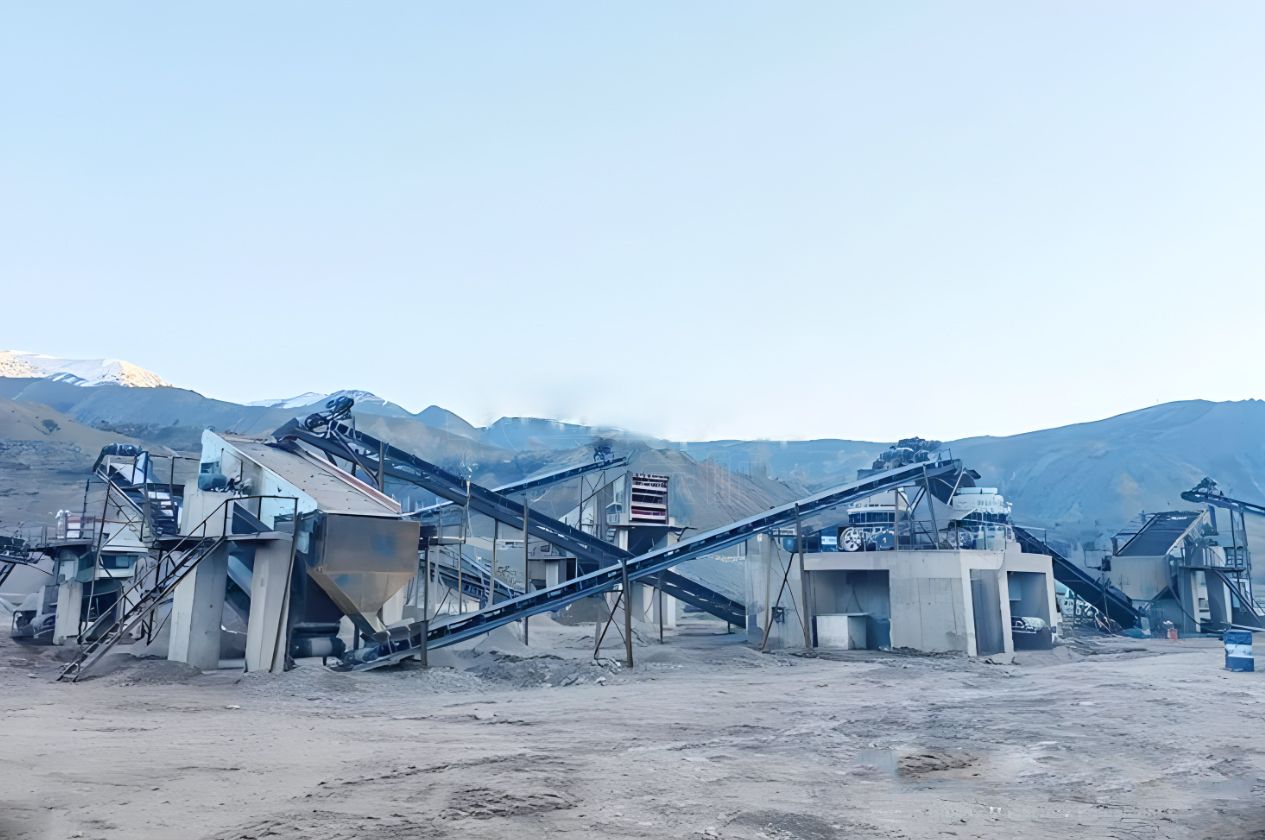

100-150tph Sand making plant
| Configuration List | ||
| Equipment | Model | Qty |
| Vibrating Feeder | ZSW420×110 | 1 |
| Jaw Crusher | 6CX110 | 1 |
| Cone Crusher | CP300 | 1 |
| Sand Making Machine | 5X8522 | 1 |
| Sand Making Machine | 5X1145 | 1 |
| Vibrating Screen | 2YA2160 | 1 |
| Vibrating Screen | 2YA2460 | 1 |
| Sand Washer | LSX920 | 1 |
100-150tph Sand making plant introduction:
The equipment configuration of artificial sand making plant includes vibrating feeder, coarse crusher, medium and fine crusher, vibrating screen, sand making machine, belt conveyor. Among them, feeders, vibrating screens and conveyors are auxiliary equipment. In the sand making plant, natural rocks, limestone, granite, sandstones, river pebbles and other materials can be processed into artificial sand that meets the requirements of building sand. It is to replace the natural river sand for the buildings and construction industries which need high-quality aggregates.
Features
1. Complete crushing and screening plant is consisting of one or several crushing and screening units based on the customers' needs.
2. This series of plant is used to crush rocks in the industries such as road construction, building construction, construction materials, water and electricity and civil building etc working with commercial concrete, dry mixed mortar and mixing plant.
3. Core equipment for manufactured sand production line is sand making machine such as vsi crusher, vsi5x crusher etc.
4. It is suitable for crushing high quality of basalt, diabase, granite, river gravel, limestone and other hard or medium hard rocks.
5. High production efficiency, regular end product granularity, good grain cubical sand, and low powder content.
How does 150 tph sand crusher plant work?
1. Large stone material is crushed by jaw crusher and impact crusher firstly by the vibrating feeder regularly feeding.
2. Then 0-40mm aggregate is transported by belt conveyor into VSI vertical impact crusher for making sand.
3. Material large than 10mm returns to VSI machine to crush again forming a closed loop. 5-10mm material can be partially finished according to the discharge requirements. Material less than 5mm enters sand washing machine to clean.
4. Here we could provide solution to meet different requirement. If you need 0.075mm fine sand, a fine sand recycling machine is a good choice. If 0-5mm sand is what you need, you could directly get it after screening, or get clean sand using sand washing machine, or quickly get high quality sand using fine sand recycling and dewatering machine.
