50-100tph Sand making plant

50-100tph Sand making plant introduction

Sand making plant is a special production line for producing sand and aggregate materials for construction. In the sand making plant, natural rocks, limestone, granite, sandstones, river pebbles and other materials can be processed into artificial sand that meets the requirements of building sand. It is to replace the natural river sand for the buildings and construction industries which need high-quality aggregates.  Usually the raw material is crushed by tertiary crushing process, including primary jaw crusher, secondary impact crusher or cone crusher, tertiary VSI sand crusher. To get high grade sand, sand washing machine could be added per requirement.

Features

1. Complete crushing and screening plant is consisting of one or several crushing and screening units based on the customers' needs.

2. This series of plant is used to crush rocks in the industries such as road construction, building construction, construction materials, water and electricity and civil building etc working with commercial concrete, dry mixed mortar and mixing plant.

3. Core equipment for manufactured sand production line is sand making machine such as vsi crusher, vsi5x crusher etc.

4. It is suitable for crushing high quality of basalt, diabase, granite, river gravel, limestone and other hard or medium hard rocks.

5. High production efficiency, regular end product granularity, good grain cubical sand, and low powder content.

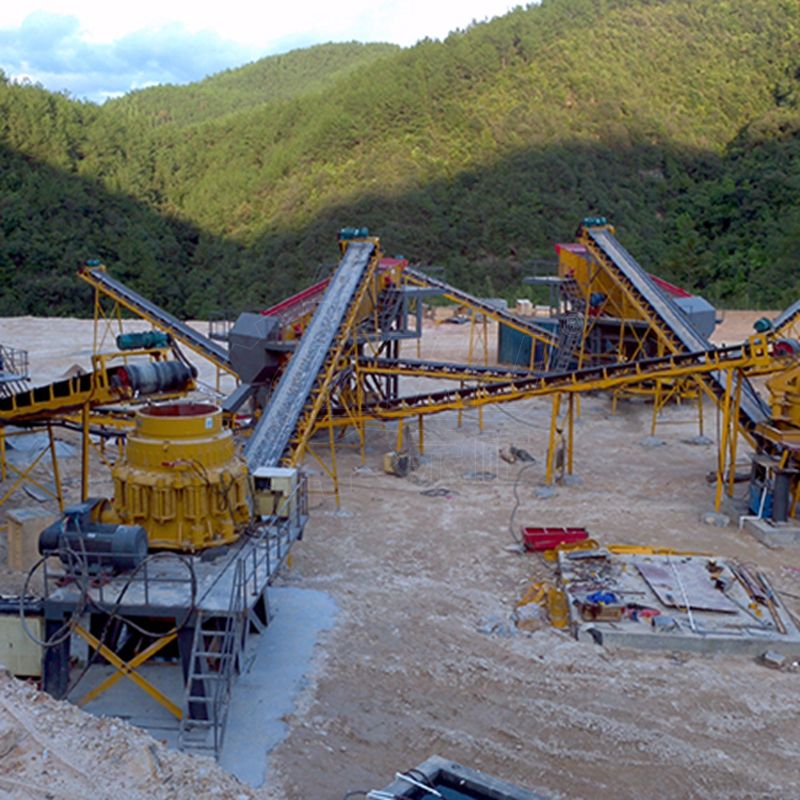

How does 100 tph sand crusher plant work?

1. The raw material is fed regularly by the vibrating feeder to the primary jaw and secondary jaw/cone/impact crusher for crushing.

2. The crushed material is then transported by a belt conveyor to the vibrating screen for sieving.

3. After sieving, proper sizes ( <40mm) would be transported to the sand making machine directly, while the oversized material will be returned to the secondary crusher for reprocessing.

4. The crushed material from the sand making machine will be transported to another or the same vibrating screen for sieving again. The sand which meet fineness requirement can be transported to a sand washing machine for cleaning, and then be retained as final products. Oversized material will be returned to the sand making machine and screen for repeated crushing & sieving until all the materials are turned into sand.
