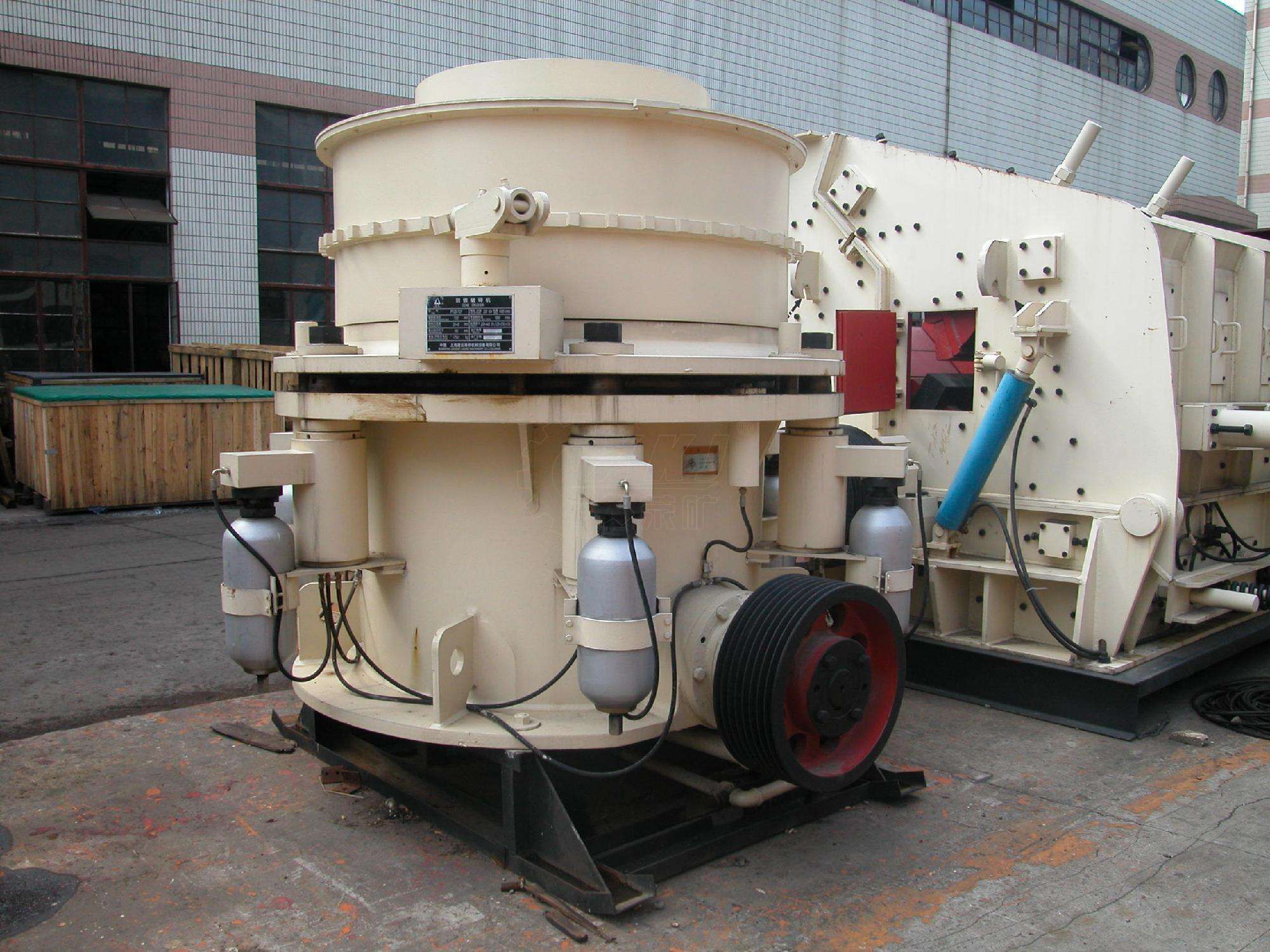

The PYB1650 cone crusher is a standard model of medium-sized mining crushing equipment. It adopts a spring hydraulic system and is suitable for secondary crushing of medium-hardness ores.

1. Basic parameters of PYB1650 cone crusher

Model specification: PYB1650 standard cone crusher

Feed port size: 250mm (maximum feed particle size)

Discharge port adjustment range: 25-60mm (hydraulic adjustment)

Processing capacity: 180-360 tons/hour (depending on the hardness of the material)

Motor power: 160kW (4-pole explosion-proof motor)

2. Core performance characteristics of PYB1650 cone crusher

Crushing efficiency:

Adopting the lamination crushing principle, the crushing ratio reaches 1:6

Spindle speed 485r/min, eccentricity 60mm

Equipped with hydraulic cavity cleaning system, downtime is reduced by 40%

Wear-resistant configuration:

Moving cone/fixed cone lining is made of Mn18Cr2 high manganese steel

Spindle is forged with 42CrMo alloy steel

Bearing life reaches 10,000 working hours

Intelligent control system:

Standard PLC automatic control module

Real-time monitoring of oil temperature/oil pressure/current parameters

Reaction time of over-iron protection device < 0.5 seconds
