Tin ore, a vital industrial raw material, is directly impacted by its crushing process, which significantly impacts subsequent beneficiation efficiency. Because tin ore typically exhibits medium-to-high hardness and uneven particle size distribution, the selection of crushing equipment must balance processing capacity, wear resistance, and energy consumption. Based on industry practice, this article recommends three core equipment types for tin ore crushing needs and analyzes their applicable scenarios and technical advantages.
1. Jaw Crusher: A Reliable Choice for Primary Crushing
The jaw crusher, with its high reduction ratio and structural stability, is the preferred equipment for primary crushing of tin ore. Its deep-chamber design effectively handles large ore (maximum feed size up to 1500mm), achieving efficient crushing through the squeezing action of the movable and fixed jaws. Given the characteristics of tin ore, a medium-sized model such as 500×750 is recommended:
Wear Resistance: High-manganese steel jaw plates are suitable for abrasion by hard minerals such as quartz, which are common in tin ore.
Energy Efficiency: A single unit saves 15%-30% energy, making it suitable for continuous mining environments.
2. Cone Crusher: An Efficient Solution for Secondary and Fine Crushing
For tin ore requiring secondary crushing, cone crushers utilize a laminated crushing principle to significantly improve processing efficiency. Its core advantages include:
Particle Size Control: Adjustable discharge opening (3-60mm) ensures a uniform product, reducing subsequent grinding load.
Adaptability: HP series multi-cylinder models can process high-hardness tin ores, such as those containing tungsten-tin co-existence.

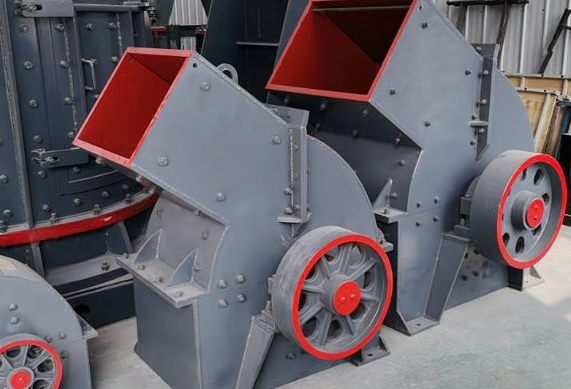

3. Hammer Crusher: Targeted Treatment of Brittle Tin Ores
When tin ores contain numerous fractures or associated brittle minerals, the hammer crusher's high-impact crushing characteristics are particularly suitable.
One-Shot Crushing: The high-speed rotor (up to 1500 rpm) directly crushes the ore, streamlining the process.
Over-Crushing Prevention: The adjustable grate design prevents over-crushing of fine particles.
Selection Recommendations
In actual production, a combined "jaw crusher + cone crusher" process is recommended: prioritizing throughput in the primary crushing stage and optimizing particle size in the secondary and tertiary crushing stages. For tin ores with complex intergrowth, an X-ray separator can be used to pre-discard waste rock to further reduce crushing energy consumption. When purchasing equipment, consider ore hardness, production targets, and site conditions. Consult the manufacturer for customized configuration if necessary.
