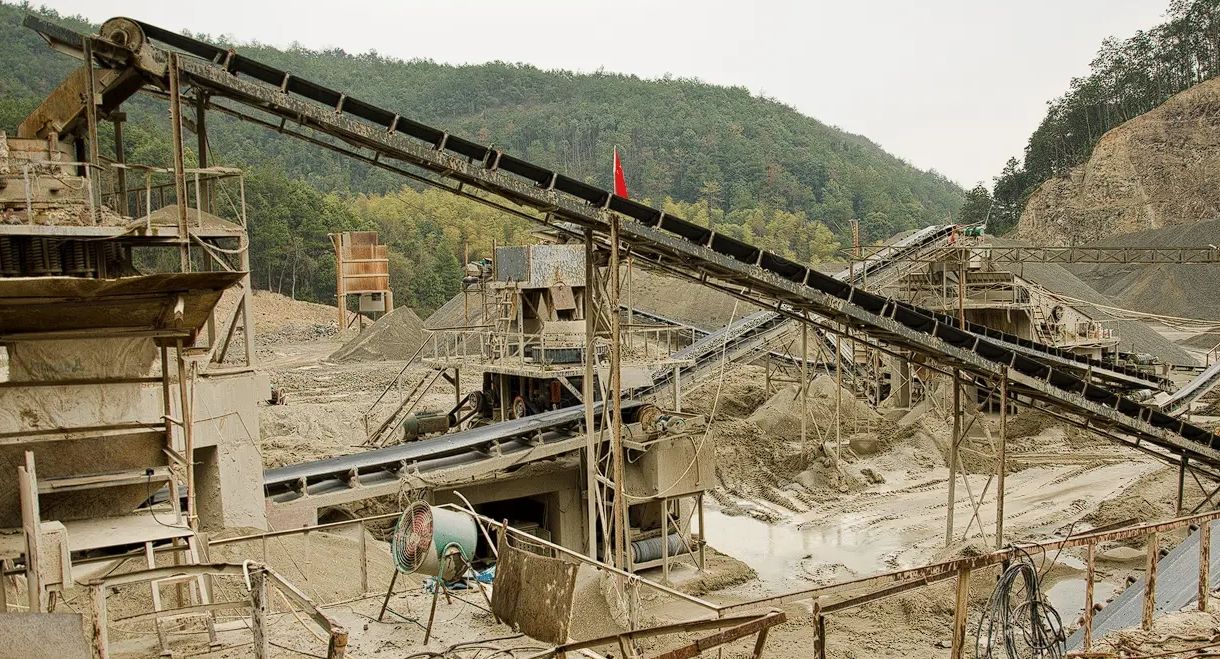

100-150 tph Stone crusher plant

Crushed stone type

Stone crushing plant introduction

A 150 t/h Stone crushing plant setup is a series of machines that are designed to take large pieces of concrete, asphalt or rock and break them into smaller pieces, coarse aggregates, crusher run, rock sand, fine aggregates. The crushed material can then be used for construction, landscaping, and other purposes. Aggregate crushing plant 150tph is formed by the cooperation of many different machines and equipment, such as jaw crusher PE600X900, cone crusher HPC200/CS110 or impact crusher PF1214, vibrating screen, belt conveyor and so on.

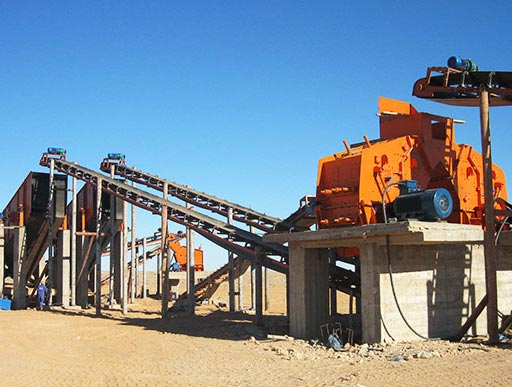

100-150 tph Stone crusher plant

Crushing plant features

1. The complete stone production plant is a two-stage crushing plant. It could produce sand & gravels with various granularities of limestone, granite, dolomite, quartz etc.

2. The final size is 0-6mm(0-1/4' ), 6-12mm(1/4’-1/2’), 12-25mm( 1/2’-1’)(or other sizes according to your need) as aggregate for construction.

3. High degree of automatic operation. The whole crushing plant requires sevral workers for machine starting and stopping, routine maintenance.

5. High production efficiency, low cost, regular end product granularity, good grain shape, and low powder content. Adopting high advanced control system to ensure security and reliable operation of the entire stone crushing plant.

6. We also design and provide stone crusher plant with capacity 50 t/h 100 t/h, 150 t/h, 200 t/h, 300 tph, 400 t/h, 500 t/h, 800 t/h, 1000 t/h. The solution with flowchart and price could be sent for free.

100-150 tph Stone crusher plant

How does 150 tph stone crusher plant work?

1. Raw material dump into the hopper by loader forklift, then feed into jaw crusher evenly and continuously by vibrating feeder for primary crushing.

2. Then the coarsely crushed materials are conveyed to secondary crusher (according to material hardness and output sizes request),secondary crusher can choose impact crusher, CS cone crusher, HP multi cylinders cone crusher and DG single cylinder cone crusher.

3. The final crushed material goes to vibrating screen to classify final qualified products according to different size ranges as stock pile forsale, or for road builidng use. Unqualified materials will be carried back to the stone crushing equipment for recrushing.

4. Customer can classify final products according to different size ranges. All the final products are up to the related standards within and beyond China. Dust is generated during the working process while the dust control units are needed.
