100tph Stone crusher plant

Crushed stone type

Production Line Introduction

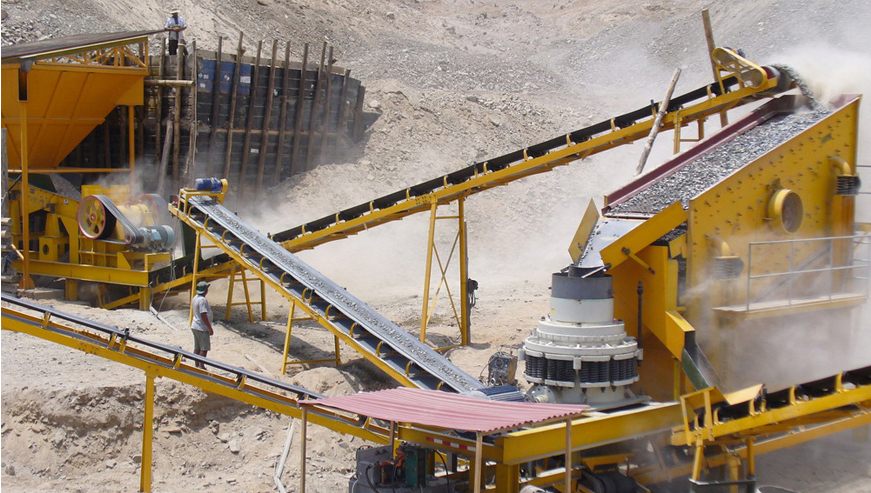

This 100 t/h Stone crusher plant 100 tph is including Hopper, vibrating feeder ZSW850x3000, jaw crusher PE500x750, impact crusher PF1214, vibrating screen, belt conveyor. It is primarily involved in the manufacture of aggregates (coarse aggregates, crusher run, rock sand, fine aggregates) from limestone, quartz，basalt and so on. Coarse aggregates are usually used in ready mix concrete and asphaltic concrete. Crusher run is used for the bases and sub-bases for road making. Fine aggregates are used for the production of concrete and plastering.

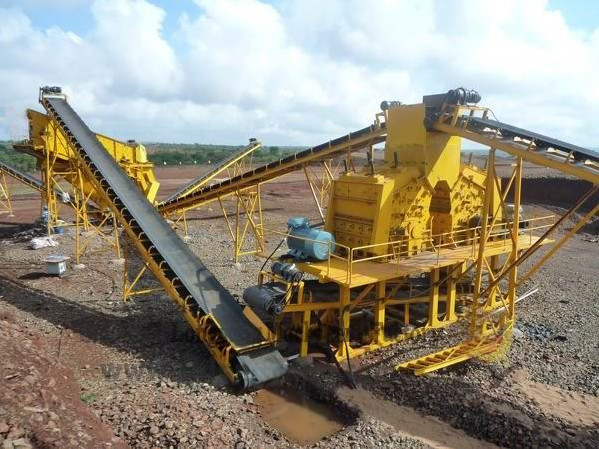

100 tph Soft Stone Crusher Plant

Features

1. The complete stone production plant is a two-stage crushing plant. It could produce sand & gravels with various granularities of limestone, granite, dolomite, quartz etc.

2. The final size is 0-6mm(0-1/4' ), 6-12mm(1/4’-1/2’), 12-25mm( 1/2’-1’)(or other sizes according to your need) as aggregate for construction. It is suitable for application in hydropower, construction, highway, railway, airport runway, civil engineering projects and etc.

3. High degree of automatic operation. The whole crushing plant requires sevral workers for machine starting and stopping, routine maintenance.

4. High production efficiency, low cost, regular end product granularity, good grain shape, and low powder content. Adopting high advanced control system to ensure security and reliable operation of the entire stone crushing plant.

5. We also design and provide stone crusher plant with capacity 50 t/h, 100 t/h, 150 t/h, 200 t/h, 300 tph, 400 t/h, 500 t/h, 800 t/h, 1000 t/h. The solution with flowchart and price could be sent for free.

100 tph Soft Stone Crusher Plant

How does 100 tph Stone crusher plant work?

1. Raw stone in medium or lower hardness is fed into jaw crusher through vibrating feeder. Vibrating feeder with grate bars is optional to separate stone debris or soil in advance.

2. After primary jaw crusher, the material will go to impact crusher machine for secondary crushing by belt conveyor.

3. The final crushed material goes to vibrating screen to classify final qualified products according to different size ranges such as 0-5mm, 5-10mm, 10-20mm, 20-40mm as stock pile forsale, or for road builidng use. Unqualified materials will be carried back to the stone crushing equipment for recrushing.

4. Customer can classify final products according to different size ranges. All the final products are up to the related standards within and beyond China. Dust is generated during the working process while the dust control units are needed.
