Hard Stone crusher plant 80-100 tph

Crushed stone type

Production Line Introduction

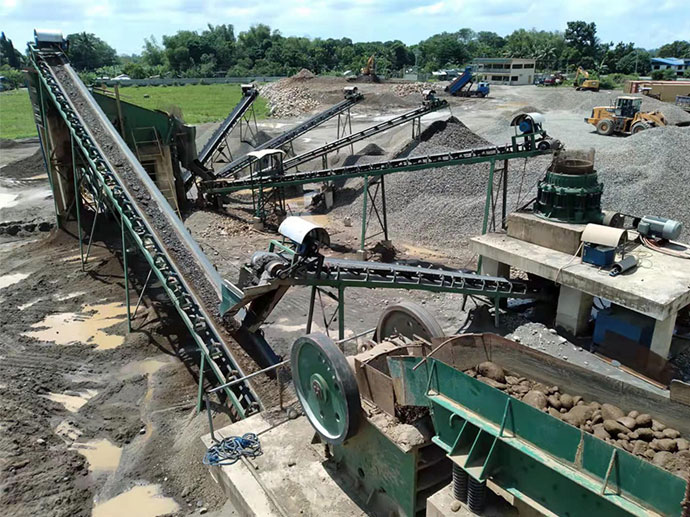

Stone crushing plant 100 tph is including Hopper, vibrating feeder ZSW850x3000, jaw crusher PE500x750, cone crusher PYB900 or CS75, vibrating screen, belt conveyor. It is primarily involved in the manufacture of aggregates (coarse aggregates, crusher run, rock sand, fine aggregates) from limestone, granite, andesite,etc. Coarse aggregates are usually used in ready mix concrete and asphaltic concrete. Crusher run is used for the bases and sub-bases for road making. Fine aggregates are used for the production of concrete and plastering.

Hard Stone crusher plant 80-100 tph

Features

1. The complete stone production plant is a two-stage crushing plant. It generally includes coarse (primary) and secondary crushing machine according to its output fineness.

2. It could produce sand & gravels with various granularities of limestone, granite, basalt, river stone, marble, iron ore, dolomite, quartz, slag etc, which is widely applied for hydropower, construction, highway, railway, airport runway, civil engineering projects and etc.

3. The final size is 0-6mm(0-1/4' ), 6-12mm(1/4’-1/2’), 12-25mm( 1/2’-1’)(or other sizes according to your need) as aggregate for construction. It is suitable for application in hydropower, highway and urban construction, etc.

4. High degree of automatic operation. The whole crushing plant requires sevral workers for machine starting and stopping, routine maintenance.

5. High production efficiency, low cost, regular end product granularity, good grain shape, and low powder content. Adopting high advanced control system to ensure security and reliable operation of the entire stone crushing plant.

6. We also design and provide stone crusher plant with capacity 100 t/h, 150 t/h, 200 t/h, 300 tph, 400 t/h, 500 t/h, 800 t/h, 1000 t/h. The solution with flowchart and price could be sent for free.

Hard Stone crusher plant 80-100 tph

How does hard stone crusher plant work?

1. Raw stone in higher or medium hardness is fed into jaw crusher through vibrating feeder. Vibrating feeder with grate bars is optional to separate stone debris or soil in advance.

2. After primary jaw crusher, the material will go to PYB cone crusher, or CS cone crusher, or hydraulic cone crusher or fine jaw crusher for secondary crushing by belt conveyor.

3. The final crushed material goes to vibrating screen to classify final qualified products according to different size ranges as stock pile forsale, or for road builidng use. Unqualified materials will be carried back to the stone crushing equipment for recrushing.

4. Customer can classify final products according to different size ranges. All the final products are up to the related standards within and beyond China. Dust is generated during the working process while the dust control units are needed.
